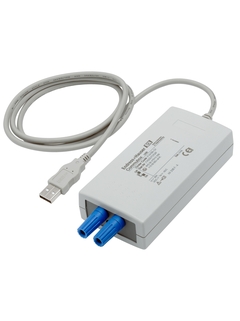

Commubox FXA195 USB/HART
Intrinsically safe interface for Smart transmitters. It converts HART protocols to USB signals.
The Commubox FXA195 is a intrinsically safe interface for Smart transmitters. It converts HART protocols to USB signals.
Remote commissioning of field devices directly from the control room or anywhere in the current loop
Full support for FieldCare and ReadWin operating programs
For connection to intrinsically safe circuits (4...20 mA)
Reactionless in accordance with IEC 61508 for connection to 4...20 mA SIL 2 loops
Switchable communication resistor
USB/HART driver for the installation on Windows 7 (x32+x64) and Windows XP
Adapter cable 4mm/2mm supplied
Field of application
The Commubox FXA195 connects intrinsically safe Smart transmitters with HART protocol to the USB port of a personal computer or Laptop. This makes the remote operation of the transmitters possible with the aid of the Endress+Hauser FieldCare and ReadWin operating programs. Power is supplied to the Commubox by means of the USB port.
Features and specifications
Documents / Manuals / Software
Accessories / Spare parts
Predecessor / Successor
Predecessor: Commubox FXA191
