Proline Promass E 100
Coriolis flowmeter

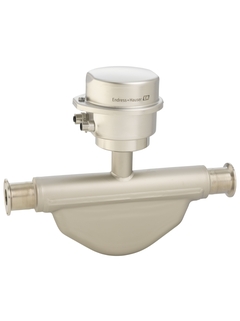

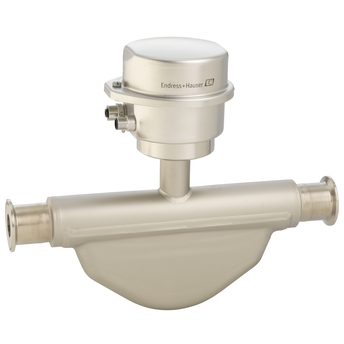

Picture of Coriolis flowmeter Proline Promass E 100 / 8E1C Cost-effective – multi-purpose device ©Endress+Hauser

The Proline Promass E 100 is the preferred choice for skid builders, equipment manufacturers and system integrators.

The Coriolis Flow Measuring Principle

Introduction of Proline Web server

The flowmeter with minimized total cost of ownership and an ultra-compact transmitter

The robust Promass E has a long standing reputation as cost-efficient solution accurately measuring liquids and gases in a wide range of standard applications. Its ultra-compact transmitter delivers full performance on the smallest footprint and enables seamless system integration, making Promass E 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology ensures compliance and process safety at all times.

  • Benefits

    • Cost-effective – multi-purpose device; an alternative to conventional volumetric flowmeters

    • Fewer process measuring points – multivariable measurement (flow, density, temperature)

    • Space-saving installation – no in/outlet run needs

    • Space-saving transmitter...

  • Field of application

    • Measuring principle operates independently of physical fluid properties such as viscosity or density

    • Accurate measurement of liquids and gases for a wide range of standard applications.

    Device properties

    • Compact dual-tube sensor

    • Medium temperature up...

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 47
    • Nr 47 Order code 71185785

      Kit Ex-i barrier

      Usage: Promass 100, CNGmass, LPGmass, LNGmass.

  • 45
    • Nr 45 Order code 71185787

      Kit connection terminal for Ex-i barrier

      Usage: Promass 100, CNGmass, LPGmass, LNGmass. Consists of: 2x Connection terminal 4-Pol.

  • 30
    • Nr 30 Order code XPD0005-

      Electronic Promass/Cubemass 100

      Main electronic module

  • 39
    • Nr 39 Order code 71185788

      Kit T-DAT, 100/300/400/500/500 digital

      Usage: Promag/Promass 100/300/500, 500 digital, Prosonic Flow E 100, Promag 400(C). (C) = generation index C.

  • 50
    • Nr 50 Order code XPD0023-

      Display module, 4-wire, 100

      Usage: Promag 100, Promass 100, Prosonic Flow E 100.

  • 21
    • Nr 21 Order code 71185789

      Kit cover, compact, Alu

      Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Consists of: Cover Aluminium, coated. O-Ring 113,90 x 3,53 NBR for cover.

    • Nr 21 Order code 71185790

      Kit cover, compact, stainless 1.4301

      Usage: Promass 100, Promag 100. Consists of: Cover stainless 1.4301. Gasket EPDM for cover.

    • Nr 21 Order code 71185793

      Kit cover,ultra compact,stainless 1.4301

      Usage: Promag/Promass 100, Promag/Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket EPDM for cover.

  • 20
    • Nr 20 Order code 71266334

      Kit cover, sight glass, compact, Alu

      Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat. Consists of: Cover with sight glass Aluminium, coated. O-Ring 113,90 x 3,53 NBR for cover.

    • Nr 20 Order code 71266335

      Kit cover, sight glass, compact, 1.4301

      Usage: Promass 100, Promag 100. Consists of: Cover with sight glass stainless 1.4301. Gasket EPDM for cover.

    • Nr 20 Order code 71266337

      Kit cover,sight glass,ultra comp.,1.4301

      Usage: Promass 100, Promag 100. Consists of: Cover with sight glass stainless 1.4301. Gasket EPDM for cover.

  • 70
    • Nr 70 Order code 71185795

      Kit housing gaskets, compact, Alu

      Usage: Promass 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Consists of: O-Ring 113,90 x 3,53 NBR for cover. Gasket EPDM for housing/sensor.

    • Nr 70 Order code 71185797

      Kit housing gaskets, compact, stainless

      Usage: Promass 100. Consists of: Gasket EPDM for cover. Gasket EPDM for housing/sensor.

    • Nr 70 Order code 71185799

      Kit hous.gaskets,ultra compact,stainless

      Usage: Promass 100, Promass 500 digital, sensor connection housing. Consists of: gasket EPDM for cover, gasket EPDM for housing/sensor.

  • 15
    • Nr 15 Order code 50098036

      Kit 10 cable glands M20x1.5 Ex

    • Nr 15 Order code 71069285

      Kit 2 cable glands M20x1.5 INOX Ex

    • Nr 15 Order code 50098041

      Kit 10 ext. M20x1.5/G 1/2" (plug PVC)

    • Nr 15 Order code 71185802

      Kit 2 cable glands G1/2" INOX Ex

      Consists of: 2 x Extension M20x1,5/G1/2" 1.4404. 2 x O-Ring. 2 x Sealing plug G1/2".

    • Nr 15 Order code 50098042

      Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)

    • Nr 15 Order code 71185800

      Kit 2 cable glands NPT1/2" INOX Ex

      Consists of: 2 x Extension M20x1,5/NPT1/2" 1.4404. 2 x O-Ring. 2 x Sealing plug NPT1/2".

  • 12
    • Nr 12 Order code 71276494

      Kit securing clamp, screw

      Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Sensor housing: Promag 400(C), (C) = generation index C, Promag/Promass 500, Promag/Promass 500 digital. Consists of: cover clamp, screw M4x16.

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.

    • Order code DK8003-

      Promass sensor, heating jacket, DK8003

      Heating medium (e.g. water, steam)
