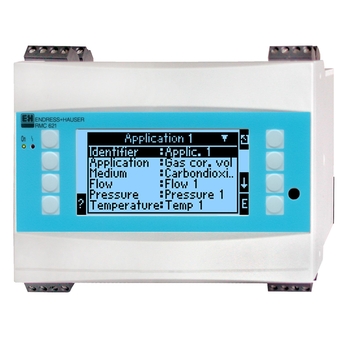

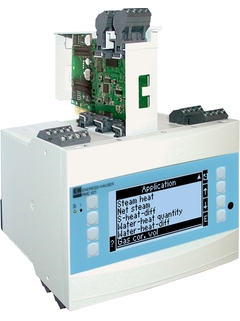

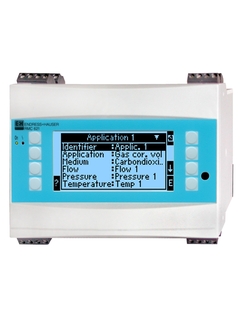

Name: Energy Manager RMC621
Brand: Endress+Hauser
Availability: InStock

Measuring principle

Energy manager
Measuring principle

Flow and energy manager
Function

Gas, liquids, steam and water bilancing for industrial energy management
Calculations

mass/heat quantity
heat quantity difference
for gases: standard volume, heating value, mass
Number of applications

3
Data storage

no
Calculation standards

IAPWS IF97
AGA8 / SGERG88
Nx/9
API 2540
customer spezific tables
ISO 5167
Communication

1 x RS232
2 x RS485
PROFIBUS DP
M-Bus
Modbus RTU
Power supply

Not defined
Loop power supply

90...250V AC 50/60 Hz
20...28V AC 50/60 Hz
20...36V DC
Protection class

IP20
Input

2...8x PFM
2...8x I
2...8x Impulse (aktiv)
2...6x RTD
2...8x Impulse (passiv)
Output

3...9x transmitter power supply
Dimensions (WxHxD)

135 x 108 x 114 mm (5.32" x 4.25" x 4.49")
Operation

Soft keys RS232 and operation software ReadWin 2000
Display

LC-Dot-Matrix 160 x 80 Punkte
Software functions

International calculation standards for gas, liquids, steam and water
Certificates

ATEX Ex ia

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

Supply terminal 4 pole

Terminals

Drawing number

Order code

8

51000780
Terminal plug-in 4pol.SMSTB2,5 91/92/53/

Terminals

Drawing number

Order code

9

51004062
Terminal plug-in 4pol.SMSTB2,5 82/81/10/

Terminals

Drawing number

Order code

10

51004063
Terminal plug-in 4pol.SMSTB2,5 83/81/110

Terminals

Drawing number

Order code

11

51004064
Terminal plug-in 4pol.SMSTB2,5 104..101

Terminals

Drawing number

Order code

14

51004065
Terminal plug-in 4pol.SMSTB2,5 134..131

further parts

Drawing number

Order code

15+18

51004066
Terminal plug-in 4pol.SMSTB2,5 1/5/6/2

Terminals

Drawing number

Order code

12

51004067
Terminal plug-in 4pol.SMSTB2,5 3/7/8/4

Terminals

Drawing number

Order code

13

51004068
Terminal RMx621/FML621, Input 1, RTD

Terminals

Drawing number

Order code

19

51004907
Terminal RMx/FML621, Input 2, RTD

Terminals

Drawing number

Order code

20

51004908
Terminal RMx/FML621, Input 2, 4-20mA

Terminals

Drawing number

Order code

22

51004909
Terminal RMx/FML621, Input 1, 4-20mA

Terminals

Drawing number

Order code

21

51004910
Terminal RMx/FML621 dig./open collector

Terminals

Drawing number

Order code

17

51004911
Terminal plug-in RMx/FML621 relay

Terminals

Drawing number

Order code

16

51004912
Terminal Ex RMx/FML621, Input2, 4-20mA

Terminals

Drawing number

Order code

22

51005953
Terminal Ex 4pol.SMSTB2,5 83/81/110/11

Terminals

Drawing number

Order code

11

51005954
Terminal plug-in Ex4pol.SMSTB2,5 1/5/6/2

Terminals

Drawing number

Order code

12

51005955
Terminal plug-in Ex4pol.SMSTB2,5 3/7/8/4

Terminals

Drawing number

Order code

13

51005956
Terminal Ex 4pol.SMSTB2,5 82/81/10/11

Terminals

Drawing number

Order code

10

51005957
Terminal Ex RMx/FML621, Input 1, RTD

Terminals

Drawing number

Order code

19

51005958
Terminal Ex RMx/FML621, Input 1, 4-20mA

Terminals

Drawing number

Order code

21

51005959
Terminal Ex RMx/FML621, Input 2, RTD

Terminals

Drawing number

Order code

20

51005960
Set, 10x fixing lever housing

further parts

Order code

71402350
Housing Field, R4 182x180x165, 5xM20, PC

Order code

52010132
Accessories RXU10

Order code

RXU10-
Service

Order code

DIENST-
