Product image industrial thermowell TT131

iTHERM ModuLine TT131

Welded thermowell for a variety of industrial applications

TT131
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Max. process pressure (static)

    Depending on configuration up to 100 bar

  • Maximum standard immersion length

    4.500 mm (177")

  • Max. immersion length on request

    4.500 mm (177")

Field of application

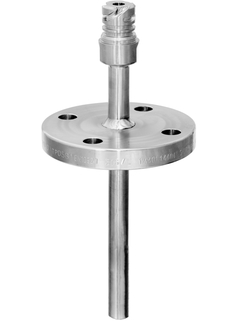

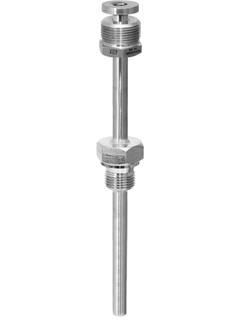

This thermowell designed according to DIN 43772 guarantees a high resistance to most industrial process environments. It is made from pipe or tube and is available in a wide range of diameters and materials. A specially designed thermowell tip ensures fast response times for a more efficient process control. Oversheaths in PTFE or tantalum can withstand extremely corrosive process conditions. It is offered with a variety of process connections: flanges, threads, weld-in or compression fittings.

  • Protects the temperature sensor against physical and chemical stress

  • High robustness for challenging process conditions

  • Pressure range: up to 100 bar (1450 psi)

  • For use in pipes, containers or tanks

  • Improved ease of maintenance (sensor replacement without process shutdown) and recalibration of the measuring point

Benefits

  • Modular configuration according to DIN 43772

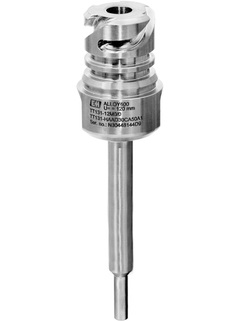

  • iTHERM QuickNeck: cost and time savings thanks to simple, tool-free recalibration of the insert

  • Extension, immersion length and total length can be chosen according to process requirements

  • Wide choice of dimensions, materials and process connections available

  • Specially designed tip for fast response times
