Prowirl 77W

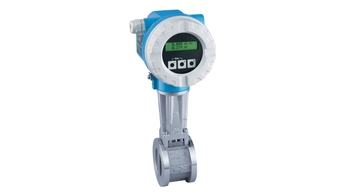

Product picture of: Prowirl 77W

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Vortex

  • Product headline

    Reliable flow measurement of gas, steam and liquids

  • Nominal diameter range

    DN 15...150
    1/2"...6"

  • Max. measurement error

    +-0.75 %

  • Measuring range

    0.19...625 m3/h

  • Max. process pressure

    PN 10...40
    Cl150/300
    JIS 10K/20K

  • Medium temperature range

    -200...400°C

  • Degree of protection

    IP67

  • Display/Operation

    4 digit display
    4 push buttons

  • Outputs

    4-20mA
    Pulse
    PFM

  • Inputs

    -

  • Digital communication

    HART
    PROFIBUS PA

  • Hazardous area approvals

    ATEX
    FM
    CSA

  • Measuring principle

    Vortex

  • Product headline

    Reliable flow measurement of gas, steam and liquids

  • Nominal diameter range

    DN 15...150
    1/2"...6"

  • Max. measurement error

    +-1.0 %

  • Measuring range

    4...5'210 m3/h

  • Max. process pressure

    PN 10...40
    Cl150/300
    JIS 10K/20K

  • Medium temperature range

    -200...400°C

  • Degree of protection

    IP67

  • Display/Operation

    4 digit display
    4 push buttons

  • Outputs

    4-20mA
    Pulse
    PFM

  • Inputs

    -

  • Digital communication

    HART
    PROFIBUS PA

  • Hazardous area approvals

    ATEX
    FM
    CSA

  • Measuring principle

    Vortex

  • Product headline

    Reliable flow measurement of gas, steam and liquids

  • Nominal diameter range

    DN 15...150
    1/2"...6"

  • Max. measurement error

    +-1.0 %

  • Measuring range

    4...5'210 m3/h

  • Max. process pressure

    PN 10...40
    Cl150/300
    JIS 10K/20K

  • Medium temperature range

    -200...400°C

  • Degree of protection

    IP67

  • Display/Operation

    4 digit display
    4 push buttons

  • Outputs

    4-20mA
    Pulse
    PFM

  • Inputs

    -

  • Digital communication

    HART
    PROFIBUS PA

  • Hazardous area approvals

    ATEX
    FM
    CSA
