Stamosens CSS70

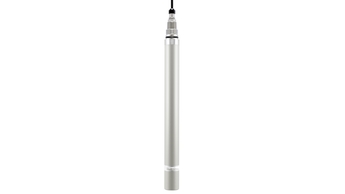

Product picture of: Stamosens CSS70

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    UV photometric

  • Characteristic

    Sensor for SAC, dissoveld organic load

  • Size

    l = 360 mm, Ø 127 mm
    l= 14.04 inch, Ø 4.95 inch

  • Design

    Sensor head Stainless steel 1.4571 (AISI 316 L)
    Sensor optical windows Quartz glass
    Sensor housing POM

  • Process temperature

    5°C ... 60°C
    41°F ... 140°F

  • Ambient temperature

    -20°C ... 60°C
    -4°F ... 140°F

  • Process pressure

    pressureless < 0,2 bar
    3psi

  • Sample flow rate

    in flow through armature min. 10 ml/min

  • Consistency of the sample

    depending upon type of probe clear water to ca.1,0 g/l TS, cloudywater to approx.. 4 g/l TS

  • Specials

    with an immersion assembly with pendulum frame directly installation in basins or with flowthrough armature behind sample preparation Stam°Clean

  • Application

    Water / Waste water / Process water

  • Measurement range

    0.3 ... 50 m-1 resp. 0.4 ... 60 mg/l COD traceable to KHP
    15 ... 700 m-1 resp. 20 ... 900 mg/l COD traceable to KHP

  • Consumables

    no chemicals necessary
