Liquiphant S FDL61

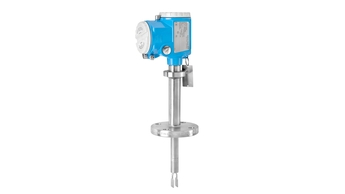

Product picture of: Liquiphant S FDL61

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Vibration Liquids

  • Characteristic / Application

    SIL 3 acc. to IEC61508 / AK5 DIN V 19250
    Redundant accord. VdTÜV in one device
    Permanent self function control
    Anual test may be waived
    Variable length up to 6000mm

  • Specialities

    Permanent self monitored
    Redundant measuring system
    Selftest by pressing a button

  • Supply / Communication

    PFM

  • Ambient temperature

    -25 °C ... 70 °C
    (-13 °F ... 158 °F)

  • Process temperature

    -40 °C ... 150 °C
    (-40 °F ... 302 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 40 bar
    (Vacuum ... 580 psi)

  • Min. density of medium

    0,5g/cm3

  • Main wetted parts

    316Ti, Alloy

  • Process connection

    G1A, NPT1,DIN DN25 ... DN100, ASME 1" ... 6",JIS RF 10 K 50 316Ti / Alloy

  • Process connection hygienic

    Tri-Clamp ISO2852
    Dairy coupling

  • Sensor length

    220mm ... 6000mm
    (8.7" ... 236")

  • Communication

    PFM / Nivotester FTL670

  • Certificates / Approvals

    ATEX
    VdTÜV 100
    WHG/ Overfill prevention
    SIL
    GL Marine
    3A

  • Components

    FTL670, Fail-safe level switch interface

  • Successor

    Liquiphant FTL81

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code

      Phase out spares

    • Order code

      Phase out repairs

    • Order code
    • Order code 52014048

      Sealing ring G1, 33x39 FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, Sliding sleeve G1 316L (52003663), 316L, 3.1 (52011880), AlloyC22, 3.1 (71118691), FTL51, FTL71, FTL81, AlloyC22 (52003664), FTL51, FTL71.

    • Order code 013827-0000

      Sealing ring, 4kt- 29 x 41 x 6 GRAPHIT

  • Predecessor

  • Successor
