**Proservo NMS7

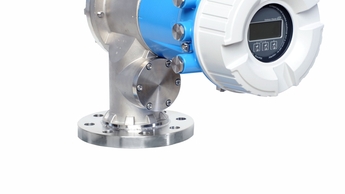

Product picture of: Proservo NMS7

"Product being phased out -
Limited availability".
Level gauge based on servo principle.
Hygiene.
For operation in process + storage
tanks, beverage, food stuff liquid
measurement.

Features and specifications

Back

Details

  • Measuring principle

    Servo / Float Tank Gauging

  • Characteristic / Application

    High precision measurement for liquid level, interface, density for hygienic applications.

  • Supply / Communication

    85-264VAC
    20-25VAC/20-62VDC

  • Accuracy

    +/-0.7 mm (+/-0.03")

  • Ambient temperature

    Standard:

    -20 °C ... 60 °C

    (-4 °F ... 140 °F)

    Optional:

    -40 °C ... 60 °C

    (-40°F ... 140 °F)

  • Process temperature

    -200 °C ... 200 °C

    (-328 °F ... 328 °F)

  • Process pressure absolute / max. overpressure limit

    5.88 bar g

    (85.28 psi)

  • Main wetted parts

    SUS316

  • Process connection

    DN80 ... DN150

    3" ... 6"

  • Max. measurement distance

    Standard: maximum 36 m (53.33 ft)

  • Communication

    4 ... 20 mA HART

    Modbus

    V1

    WM550

    BPM

    Mark-Space

    Contact relay x4

  • Certificates / Approvals

    TIIS

  • Safety approvals

    SIL2

  • Application limits

    Stilling well or guide wires for turbulent application
    Recommend PTFE displacer for high viscosity application
    Interface measurement requires min. difference of 0.100 g/ml between layers

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 11
    • Nr 11 Order code 017803-0066

      O-ring, cover drum housing, SS, FKM

      Size: D158mm, d3.5mm. Usage: NMS5/NMS7.

    • Nr 11 Order code 017803-0035

      O-ring, cover drum housing SS, silicone

      Size: D158mm, d3.5mm. Usage: NMS5/NMS7.

    • Nr 11 Order code 70109105

      O-ring, cover, drum housing. SS, NBR

      Size: D158mm, d3.5mm. Material: NBR. Part: drum housing cover, stainl. steel. Usage: NMS5/NMS7.

    • Nr 11 Order code 017803-0033

      O-ring, calibration window, NBR

      Size: D60mm, d3mm. Usage: NMS5/NMS7.

    • Nr 11 Order code 017803-0041

      O-ring, calibration window, silicone

      Size: D60mm, d3mm. Material: Silicon rubber. Part: calibration window cover, NMS5. Usage: NMS5/NMS7.

    • Nr 11 Order code 017803-0036

      O-ring, calibration window, FKM

      Size: D60mm, d3mm. Material: FKM. Part: calibration window cover, NMS5. Usage: NMS5/NMS7.

    • Nr 11 Order code 017803-0030

      O-ring, display cover, HNBR

      Size: D113.90mm, d3.53mm. Material: HNBR. Part: terminal/elec. compartment. Part: NMS/NRF display. Part: NRF/NRR/NAB terminal. Usage:NMS5/NMS7, NRF560, NRR261, NAB560.

    • Nr 11 Order code 017803-0040

      O-ring, terminal cover, NBR

      Size: D123.5mm, d3.5mm. Material: NBR. Part: terminal box. Usage: NMS5/NMS7.

  • 21
    • Nr 21 Order code 017800-0111

      Cover, display module, Aluminium

      Display window cover. Color: E+H gray. Material: aluminium casting. Usage: NMS5/NMS7, NRF560.

    • Nr 21 Order code 017800-0112

      Cover, terminal box, Aluminum, NMS

      NMS terminal box cover. Color: E+H gray. Material: aluminium casting. Usage: NMS5/NMS7.

  • 31
    • Nr 31 Order code 70103940

      POW-6, HV, non Ex i

      Power module AC85-264V. Non EExia. Usage: NMS5/NMS7, NRF560.

    • Nr 31 Order code 70103941

      POW-6, LV, non Ex i

      Power, DC20-60V,AC20-55V for non EExia. Usage: NMS5/NMS7, NRF560.

  • 32
    • Nr 32 Order code 70103937

      TCB-6, CPU module

      ROM IC has to be ordered separately. Usage: NMS5/NMS7.

  • 33
    • Nr 33 Order code 017800-0005

      COM-1, Communication module, V1

      Usage: NMS5/NMS7.

    • Nr 33 Order code 52013661

      Upgrade kit V1

      Module with wiring harness and stud. Consists of: 3x stud, screw, washer. Usage: NMS5, NMS7.

    • Nr 33 Order code 71086763

      Modbus module RS485, COM-5

      Usage: NMS5/NMS7.

    • Nr 33 Order code 70106270

      Upgrade kit Modbus RS485

      Module with wiring harness and stud. 3x stud, screw, washer. Usage: NMS5/NMS7.

    • Nr 33 Order code 56004484

      COM-6 HART, passive remote commu. module

      HART communication module upgrade. Suitable cable harness 52013650. Size: 114x97mm, software on memory chip. Usage: NMS5/NMS7.

    • Nr 33 Order code 52013651

      Upgrade kit HART passive

      Module with wiring harness and stud. Consists of: 3x stud, screw, washer. Usage: NMS5, NMS7.

    • Nr 33 Order code 56004485

      COM-6 HART, active remote commu. module

      HART communication module upgrade. Suitable cable harness 70106037. Size: 114x97mm, software on memory chip. Usage: NMS5/NMS7.

    • Nr 33 Order code 70106039

      Upgrade kit HART active output

      Module with wiring harness and stud, 3x stud, screw, washer. Usage: NMS5/NMS7.

    • Nr 33 Order code 56004534

      Communication module WM550, arrestor

      Usage: NMS5/NMS7.

    • Nr 33 Order code 52013662

      Upgrade kit WM550

      Module with wiring harness and stud. Consists of: 3x stud, screw, washer. Usage: NMS5, NMS7.

    • Nr 33 Order code 56004409

      Communication module Mark Space

      Usage: NMS5/NMS7.

    • Nr 33 Order code 52013658

      Upgrade kit Mark Space

      Module with wiring harness and stud. Consists of: 3x stud, screw, washer. Usage: NMS5, NMS7.

    • Nr 33 Order code 56004355

      Communication module ENRAF BPM, COM-3

      Usage: NMS5/NMS7.

    • Nr 33 Order code 52013649

      Upgrade kit Enraf BPM

      Module with wiring harness and stud. Consists of: 3x stud, screw, washer. Usage: NMS5, NMS7.

  • 34
    • Nr 34 Order code 017800-0007

      Alarm output, 4x contact, I/O 3

      4x Contact output, 4x Contact Input. Usage: NMS5/NMS7.

    • Nr 34 Order code 70109108

      Alarm output, 2x contact, I/O 3, TUV OSP

      2x Contact output, overspill protection TUV, 2x Contact input. Usage: NMS5/NMS7.

  • 35
    • Nr 35 Order code 017800-0017

      Output 4-20mA, I/O 5, TCB4

      2 channel 4-20mA current output. Usage: NMS5/NMS7.

    • Nr 35 Order code 52013656

      Upgrade kit I/O-5

      Module with wiring harness and stud. Consists of: 2x stud, screw, washer, nut. Usage: NMS5, NMS7.

  • 37
    • Nr 37 Order code 56004442

      Oper. I./C.O., spot temperature

      I/O-3,T-AMP spot temp, with chassis. Usage: NMS5/NMS7.

    • Nr 37 Order code 70106035

      Upgrade kit oper. I./C.O., Ex d temp.

      Operation input and contact output with Ex d spot temperature. T-Amp and I/O-3 module assembly with aluminium chassis. Include stud, screw, spring washer, wiring harness. Usage: NMS5/NMS7.

    • Nr 37 Order code 70106032

      Upgrade kit oper. input/contact out

      I/O-3 with 52013652 cable for CPU. 52013653 cable for terminal, chs., set. Usage: NMS5/NMS7.

    • Nr 37 Order code 56004491

      Spot temp. with Chassis

      T-AMP spot temp, with chassis. Usage: NMS5/NMS7.

    • Nr 37 Order code 56004490

      Spot temp. input T-AMP Upgrade KIT

      T-AMP,with,70106033 cable, connector. Cable 70106034, connector (terminal). Chassis, spacer, washer, screw set. Usage: NMS5/NMS7.

  • 40
  • 41
    • Nr 41 Order code 52013660

      Wiring harness,Ter.-COM-1/RS485/BPM mod.

      Wiring harness between terminal and module. Terminal 6, 7, 2c, 10P black connector, red connector w. printed circuit board. Usage: NMS5, NMS7.

    • Nr 41 Order code 52013650

      Wiring harness, Term.-HART passive mod.

      Wiring harness between terminal and module. Terminal 6, 7, 2c, 10P black connector, red connector with PCB. Usage: NMS5, NMS7.

    • Nr 41 Order code 70106037

      Wiring harness, Term.-HART active mod.

      Wiring harness between terminal and module. Terminal 6,7, 2c, 10P black connector, red connector with printed circuit board. Usage: NMS5/NMS7.

    • Nr 41 Order code 52013657

      Wiring harness, Terminal-Mark Space mod.

      Wiring harness between terminal and module. Terminal 20, 21, 22, 23, 4c, 10P black connector, 4P brown connector. Usage: NMS5, NMS7.

    • Nr 41 Order code 52013648

      Wiring harness, Terminal-ENRAF BPM mod.

      Wiring harness between terminal and module. Terminal 6, 7, 2c, 10P black connector, 2P brown connector. Usage: NMS5, NMS7.

    • Nr 41 Order code 52013653

      Wiring harness, Terminal-I/O-3 module

      Terminal 8-18, 8c (output), 3c (input), 2x 10P black connector, 13P brown connector. Usage: NMS5, NMS7. Wiring harness between terminal and module.

    • Nr 41 Order code 52013652

      Wiring harness I/O-3-TCB

      Wiring harness between I/O-3 and TCB. 9-wire, 9-Pin brown connector. Usage: NMS5, NMS7.

    • Nr 41 Order code 52013655

      Wiring harness, Terminal-I/O-5 module.

      Wiring harness between terminal and 4-20mA output module. Terminal 20-23, 4c, 10P black connector, 4P brown connector. Usage: NMS5, NMS7.

    • Nr 41 Order code 70106033

      CPU, T-AMP Ex d module cable

      Cable with connector for TCB. Usage: NMS5/NMS7.

    • Nr 41 Order code 70106034

      Wiring harness,Terminal-T-AMP Ex d mod.

      Wiring harness between terminal and module. Terminal 24, 25, 26, 3c, 5P black connector, 3P brown connector. Usage: NMS5/NMS7.

  • 42
    • Nr 42 Order code 56004508

      Terminal, noise filter, Exd

      EExd type, without Exia sepalater wall. Usage: NMS5/NMS7.

  • 43
    • Nr 43 Order code 017800-0015

      PCB CPU Carrier set complete, spacer

      PCB chassis with screw. Usage: NMS5/NMS7.

  • 44
    • Nr 44 Order code 70103938

      Display module 4line, 3key optical

      4-line graphic type. NMS5/NMS7: later or equal softwareV4.27. NRF560: later or equal software V1.94. Usage: NMS5/NMS7, NRF560.

  • 51
    • Nr 51 Order code 017800-0043

      Detector unit NMS, TCC-3

      Usage: software V. 4.24 or before 4.24.

    • Nr 51 Order code 70103944

      Detector unit NMS, TCC-3, V1

      Usage: software V.4.27 later or now, NMS5/NMS7.

  • 52
    • Nr 52 Order code 56004527

      Wire drum bracket, SS

      2x PTFE bushing, 2x SS screw. Usage: NMS5/NMS7.

    • Nr 52 Order code 56004526

      Wire drum bracket SS, Teflon coated

      2x PTFE bushing, 2x SS screw. Usage: NMS5/NMS7.

    • Nr 52 Order code 017800-0221

      Bearing, wire drum bracket, PTFE, NMS

      Usage: NMS5/NMS7.

  • 53
    • Nr 53 Order code 56004424

      Measuring wire, 0.2mm, SS, 30m

      316 0.2 wire,30m,316 ring. Usage: TGM5.

    • Nr 53 Order code 56004909

      Measuring wire, 0.2mm, SS, 16M

      316 0.2 wire, 16m, 316 ring. Usage: NMS7, TGM5.

    • Nr 53 Order code 56004256

      5x measuring wire, 16m, d=0.4mm, PTFE

      5x wire d=0.4mm, 5x ring. Material: PTFE. Usage: NMS5/NMS7.

    • Nr 53 Order code 56004912

      Measuring wire, 16m, PFA>316L, 0.4 mm

      PFA coated 0.4 wire, 16m, PTFE O-ring. Usage: NMS5, TGM5.

    • Nr 53 Order code 017800-0241

      10x wire ring, 316

      10x wire ring made of 316 to connect measuring wire with displacer. Usage: NMS5/NMS7, TGM5.

    • Nr 53 Order code 017800-0242

      10x Wire ring, PTFE>316

      10x wire ring made of PTFE>316 to connect measuring wire with displacer Usage: NMS5/NMS7, TGM5.

    • Nr 53 Order code 70105994

      Displacer, 50mm, PTFE

      Displacer 50mm: PTFE. Incl. 1m fixing tube PTFE>316. Incl. measuring wire ring: PTFE. Usage: NMS5, NMS7.

  • 75
