U.S. Style Easytemp TSM470G

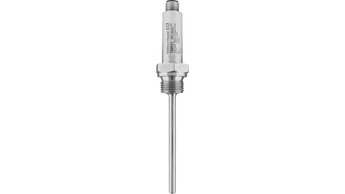

Product picture of: U.S. Style Easytemp TSM470G

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    US style

    compact temperature probe

    threaded process connection

    transmitter included (fixed range)

  • Thermowell / protection tube

    without (not intended to use with thermowell)

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    1/4'' (6,35 mm)

  • Max. immersion length on request

    up to 762 mm (30,00'')

  • Material protection tube/ thermowell

    1.4401 (316)

  • Process connection

    male thread:

    G1/2"

    NPT1/2"

    compression fitting:

    NPT1/8"

    NPT1/4"

  • Tip shape

    straight

  • Operating temperature range

    PT 100:

    -40 °C ... 150 °C

    (-40 °F ... 302 °F)

  • Max. process pressure (static)

    at 20 °C: 100 bar

  • Accuracy

    class A acc. to IEC 60751

  • Response time

    63% rt = 8,0 s

  • Certification

    German Lloyd (GL) - marine approval

    UL 3111-1

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 51005148

      Cable M12x1 l=5m

      5m cable 4x 0.34 mm2, molded PVC angled connector, M12x1 connector screw Cu Sn/Ni, IP67.

    • Order code 51006327

      M12 elbow plug ready for cable, IP67,PG7

    • Order code TSM470A-VK

      Configuration kit for EASYTEMP TSM 470 Setup software and PC interface cable (TTL/RS232C) for configuration of TSM 470

    • Order code 51007657

      Adapter Upgrade TXU10

      4 pin plug to M12.

    • Order code TXU10-

      Configuration kit TXU10-

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

    • Order code

      The unit is not repairable

  • Successor
