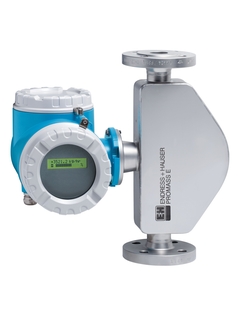

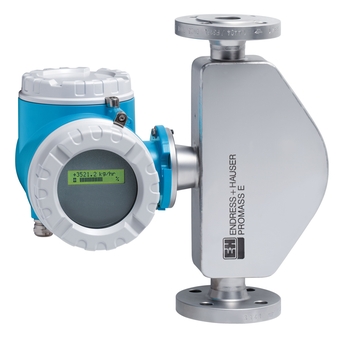

Promass 40E

Coriolis

The flowmeter for minimized cost of ownership combined with a compact field transmitter. Highly accurate measurement of liquids and gases for a wide range of standard applications.

Cost-effective – multi-purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, temp). Space-saving installation – no in/outlet run needs. Compact dual-tube system. Medium temperature up to +140 °C (+284°F).

Cost-effective – dedicated design for low-end applications and direct integration. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2-line backlit display without local operation. Device in compact version.

DN 8 to 80 (⅜ to 3")

Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)

Mass flow, volume flow, corrected volume flow

Mass flow (liquid): ±0.5 %
Volume flow (liquid): ±0.5 %
Mass flow (gas): ±1.0 %
Density (liquid): ±0.0005 g/cm³

0 to 180 000 kg/h (0 to 6600 lb/min)

PN 100, Class 600, 63K

–40 to +140 °C (–40 to +284 °F)

Standard: –20 to +60 °C (–4 to +140 °F)
Option: –40 to +60 °C (–40 to +140 °F)

1.4301 (304), corrosion resistant

Powder-coated die-cast aluminium

IP67, type 4X enclosure

2-line backlit display without push buttons (direct integration)
Configuration via operating tools possible

3 outputs:
0-20 mA (active)/4-20 mA (active/passive)
Pulse/frequency/switch output (passive)

Status input

HART

DC 16 to 62 V
AC 85 to 260 V (45 to 65 Hz)
AC 20 to 55 V (45 to 65 Hz)

ATEX, IECEx, FM, CSA, NEPSI, JPN

3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, marine
PED, CRN
3-A

CE, C-tick, EAC marking

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR

Marine approval

PED, CRN

3.1 material

3-A
