Conductive
Point level detection

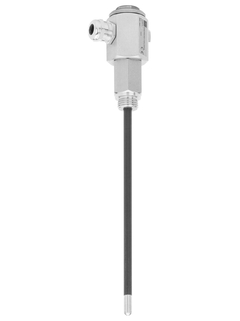

One rod probe 11371

Probe 11371 ©Endress+Hauser

Point level detection of conductive liquids in the food industry

The 11371 is used as point level detection in vessels with liquid foodstuffs, e.g. milk, beer, fruit juice. Corrosion-resistant materials for rod and insulation and the capability of CIP/SIP make it perfectly fit for the food industry.

  • Benefits

    • Reliable measurement due to corrosion-resistant materials for rod and insulation (can be used with aggressive materials)

    • Safe hygienic processes thanks to CIP/SIP ability of the probe (no special cleaning procedures required)

    • Variable process connections...

  • Field of application

    Conductive point level detection in vessels with liquid foodstuffs, e.g. milk, beer, fruit juice.

    • Process connections: Threads and flanges

    • Measuring range: 50 to 2,000mm (1.9 to 78.7")

    • Temperature: -10 to 100°C (14 to 212°F)

    • Pressure: -1 to +10bar (-15...

Features and specifications

Back

Details

  • Measuring principle

    Conductive

  • Characteristic / Application

    One rod probe. Simple rod shortening or rod change on location

  • Supply / Communication

    Relay

  • Ambient temperature

    -20 °C ... 120 °C
    (-4 °F ... 248 °F)

  • Process temperature

    -20 °C ... 120 °C
    (-4 °F ... 248 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 10 bar
    (Vacuum ... 145 psi)

  • Min. conductivity of medium

    20 µS/cm

  • Main wetted parts

    PFA, 316TI

  • Process connection

    G 1 1/2A
    set-in nozzle

  • Sensor length

    0.05m ... 2m
    (2" ... 79")

  • Communication

    Relay

  • Components

    Transmitter: FTW325

  • Application limits

    Observe min. medium conductivity

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 20
  • 55
    • Nr 55 Order code 517211-1000

      Weld-in socket 11371 D30 G1/2 SS, gasket

      D=30mm, 316Ti. O-ring 17.0x2.5 EPDM. Usage: 11371.

    • Nr 55 Order code 517212-1000

      Process connect. 11371 G1/2 316Ti,gasket

      Threaded boss. Gasket 22x32x3 FA. O-ring 17x2.5 EPDM.

  • 58
    • Nr 58 Order code 917213-1000

      Sealing cone d_i=7.5, SI

      Material: silicone. Usage: 11371.

  • 57
    • Nr 57 Order code 71185027

      Sealing ring G3/4, 27x32, FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51, FTL80/FTL81, FMP50/FMP51/FMP56, FMR62.

    • Order code

      Weld-in adapter and correspondig sealings

    • Order code 71258355

      Weld-in adapter G3/4 d=50, 316L

      Flush mount process connection. For vessel-mounting. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33, FMI51, FTI51, 11371. Usage: TMR35.

  • 50
    • Nr 50 Order code 11371X-

      Probe rod 11371, 316Ti

      PFA partially insulated. Cone, mounting kit.

  • Predecessor
