Nivotester FTR525
Process transmitter for FQR57/FDR57

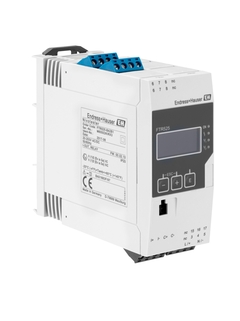

Nivotester FTR525 ©Endress+Hauser

Process transmitter with control unit for Soliwave FQR57/FDR57

The process transmitter Nivotester FTR525 is used in conjunction with the microwave barrier Soliwave FQR57/FDR57 for detection of point levels and bulk flow (flow / no flow, trend). The microwave barrier is also suitable for detecting and counting objects, detection of deposits as well as monitoring of filling processes and material transfer points. It can be installed in containers, conduits, hoppers, filling stations, shafts, filters or on free fall shafts.

  • Pricing after login and configuration

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FTR525
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Optional add-ons
Please use the individual configurator to continue.
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Simple und comfortable menu-guided operation via display and keys

    • Different adjustment functions (automatic or manual) with clear graphic representation of the set detection range and the current signal strength

    • Up to 5 different channels can be set for...

  • Field of application

    Non-contact (wear- and maintenance-free) limit detection (min/max) and flow monitoring (flow/no flow, trend) for bulk solids.

    • Detecting, counting and positioning of objects

    • Detection and analysis of deposits and contamination in filters

    • Monitoring of...

Features and specifications

Back

Details

  • Measuring principle

    Microwave barrier

  • Characteristic / Application

    Process transmitter for FQR57 / FDR57

    With graphical display

    Many settings like:

    :: Sensitivity, attenuation, channel

    :: Switch on and off points, delay

    Functions for application analysis

    Design: Top-hat rail

  • Supply / Communication

    24-230 VDC (-15%/+10%)

    resp. 42-230 VAC (-15%/+10%),

    50/60Hz

  • Ambient temperature

    -20 °C...+60 °C

    (-4 °F...+140 °F)

  • Communication

    Relay, SPDT

    Solid-state relay

    4-20 mA

    Alarm open collector

  • Certificates / Approvals

    ATEX, CSA C/US, IEC Ex

  • Components

    Transmitter: FQR57

    Transceiver: FDR57
