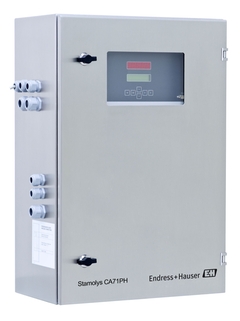

Stamolys CA71PH

This product is no longer available.

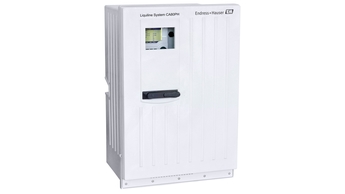

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Analyser for phosphate

  • Size

    648 x 436 x 250 mm
    25.27 x 17.00 x 9.75inch

  • Design

    GRP, Stainless steel or open frame

  • Process temperature

    10°C ... 30°C
    50 ... 86°F

  • Ambient temperature

    5°C ... 40°C
    41 ... 104°F

  • Process pressure

    pressureless < 0,2 bar
    3psi

  • Sample flow rate

    min. 5 ml/min

  • Consistency of the sample

    low solid content(TS<50mg/l)

  • Specials

    at any time adaptable at suburb/customer conditions, two-channelversion available, sample fertilization without further pump possible

  • Application

    Water / Wastewater / Processwater

  • Power supply

    115 V AC / 230 V AC, 50/60 Hz

  • Output

    0/4 ... 20 mA
    Contacts: 2 limit contacts (per channel), 1 system alarm contact

  • Measurement range

    0,05 ... 2,5 mg/l PO4-P
    0,5 ... 20 mg/l PO4-P
    0,1 ... 25 mg/l PO4-P

  • Consumables

    Chemicals necessary

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code CAY240-

      CAY240 reagent set for CA7xPH-A+E

      contains reagent PH-A1, PH-A2 (blue). UN/Class/Division: UN 2796/8/C1.

    • Order code CAY243-

      CAY243 reagent for CA7xPH-B+D

      contains reagent P1 (yellow). UN/Class/Division: UN 3264/8/17b.
