Assembly for process photometers
OUA260

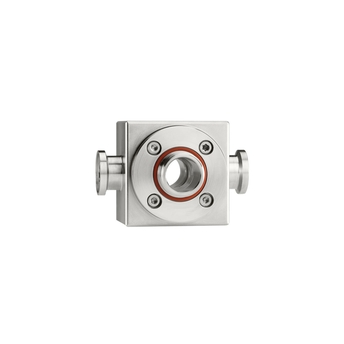

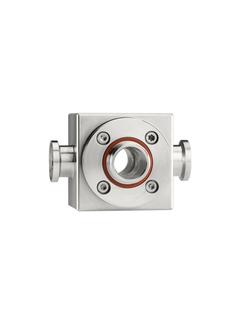

Flow assembly for process photometers ©Endress+Hauser

Flow assembly for a variety of optical inline measurements

OUA260 is the best-in-class flow assembly for absorption, color and turbidity measurements. Its ultra-hygienic design and certified biocompatibility meet the highest demands to protect your products reliably from contamination. Multiple process connections and available materials ensure a perfect fit and performance even in aggressive media. Better still, its low cell volume speeds up sensor response times, thus providing you with fast measuring values.

  • Benefits

    • Fast measuring values thanks to low cell volume

    • Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)

    • Certified biocompatibility according to USP class VI

    • Ultra-hygienic thanks to electropolished surface Ra=0.4 µm (16 µinch)

    • Extremely...

  • Field of application

    The OUA260 flow cell is used in combination with:

    • OUSAF12 Suspended solids and color sensor

    • OUSAF22 Color sensor

    • OUSAF44 UV absorption sensor

    • OUSTF10 Turbidity and suspended solids sensor

    Typical applications are:

    • Chromatography control

    • Filtration...

Features and specifications

Back

Details

  • Measuring principle

    UV photometric

  • Application

    Flow assembly for use in combination with photometric sensors OUSAFxx and OUSTF10

  • Material

    Body: SS316L, Kynar, further on request
    Windows: Pyrex, Quartz or Sapphire
    O-rings: Viton, Silicone, EPDM, Kalrez

  • Process temperature

    0-130 °C (32-194 °F)

  • Process pressure

    up to 100 bar (1450 psi) depending on material, mean diameter and process connection
