Sampling assembly
Samplefit CSA420

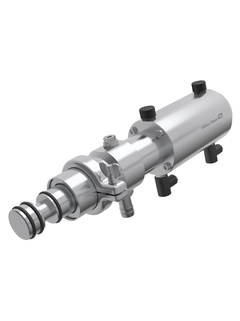

Samplefit CSA420 - Stainless steel version with triclamp ©Endress+Hauser
Samplefit CSA420 - Wetted material stainless steel, PA housing ©Endress+Hauser
Samplefit CSA420 - PP/ PA version with flange ©Endress+Hauser
  • Samplefit CSA420 - Stainless steel version with triclamp
  • Samplefit CSA420 - Wetted material stainless steel, PA housing
  • Samplefit CSA420 - PP/ PA version with flange

Assembly for taking samples in process applications

Samplefit CSA420 enables you to take samples directly from pressurized pipes. Designed for fast sampling intervals, it provides samples that accurately represent your medium composition and enables you to fine-tune your process precisely. The low sample volume minimizes product loss and thus increases the efficiency of your process.

  • Pricing after login and configuration

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

CSA420
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Optional add-ons
Please use the individual configurator to continue.
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • Extremely accurate representation of medium composition because of fast sampling interval

    • Low sample volume for minimal loss of valuable media

    • No cross-contamination thanks to optional cleaning valves

    • Optimum adaptation to your process thanks to various...

  • Field of application

    • Process applications

    • Wastewater

    • Analytical stations

    • Monitoring of surface water

    • Drinking water

Features and specifications

Back

Details

  • Measuring principle

    Sampler

  • Functions

    Pneumatic sampling assembly

  • Application

    sampling from pressurized pipes

  • Dosing system

    fixed sample volume 10, 30, or 50 ml

  • Installation

    process connection Triclamp 2" or flange DN50

  • Process temperature

    0 - 50°C

  • Process pressure

    up to 6 bar

  • Material

    plunger PP; housing Polyamid PA
    plunger 1.4404/316L; housing Polyamid PA
    plunger 1.4404/316L; housing 316Ti

  • Dimension

    lenght 381 mm x diameter 75 mm

  • Weight

    dependent on version 1,55 kg to 6,1 kg

  • Option

    optional cleaning valve
