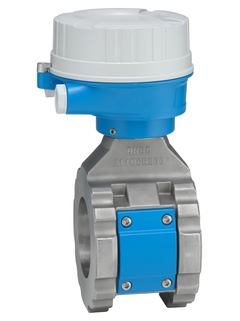

Product picture of total solids meter Proline Teqwave MW 500

Proline Teqwave MW 500 – Total solids meter

Inline measuring device for total solids measurement in wastewater sludge as remote version with up to 4 I/Os

4W5B

Compare

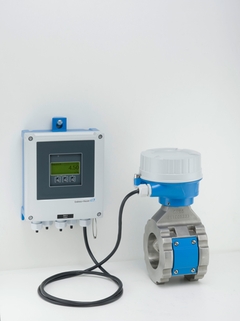

Picture of total solids meter Proline Teqwave MW 500 with remote transmitter — Proline Teqwave MW 500 with remote transmitter

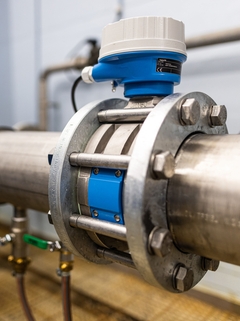

Picture of total solids meter Proline Teqwave MW 500 installed in a wastewater treatment plant — Proline Teqwave MW 500 installed in a wastewater treatment plant

Proline Teqwave MW 500 – real-time total solids measurement from primary sludge to dewatered sludge

Specs at a glance

Measurement range

0 to 500 g/l (0 to 31 lb/ft3), 0 to 50%

See all specifications

Field of application

The inline measuring device Teqwave MW 500 enhances sludge treatment in wastewater treatment plants through real-time total solids measurement using microwave transmission. This allows quicker, more efficient process optimization and fewer lab measurements. Continuous data availability improves solid-liquid separation, boosts operational safety, and enables swift response to process changes. Typical applications in sludge treatment include clarification, digestion, and dewatering.

The remote transmitter version Proline 500 allows for maximum installation flexibility in challenging environments. Equipped with a built-in web server and optional integrated WLAN, it simplifies operation and provides additional process and device information.

Benefits

Reliable, real-time measuring performance – permanent in-line measurement with excellent repeatability
Less maintenance – polished measuring tube reduces build-up formation and extends cleaning intervals
Reduced effort in programming – onboard load rate calculation available in combination with a flowmeter
Fewer process measuring points – multivariable measurement (total solids, temperature, conductivity)
Easy installation – innovative sensor construction and state-of-the-art technology with web server (optional WLAN)
Full access to process and diagnostic information – numerous freely combinable I/Os available
Integrated verification – Heartbeat Technology enables documented device functionality without process interruption

Videos

Learn in this video how to save resources in sludge treatment with Proline Teqwave MW and continuous in-line measurement of total solids.

Smart instrumentation through Heartbeat Technology

You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.
- More information
