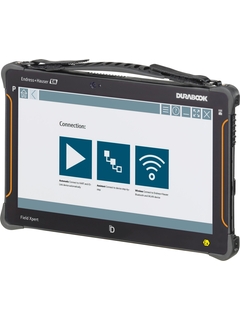

Tablet PC Field Xpert SMT70B
Specs at a glance
-
Input
Camera:
8 MP camera on the back with auto focus and LED flash with 1500 mcd
2 MP camera on the front
Scanner:
1D/2D barcode scanner
Field of application

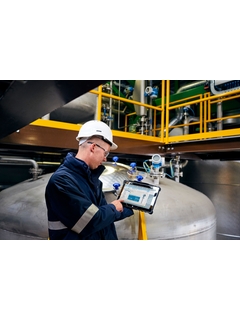

The Field Xpert SMT70B tablet PC for device configuration enables mobile plant asset management in hazardous (Ex zone 2) and non-hazardous areas. It is suitable for commissioning and maintenance staff to manage Endress+Hauser and third-party field instruments with a digital communication interface and documents the progress of the work. Field Xpert also uses the most secure Bluetooth connection for its wireless connectivity!
The Field Xpert SMT70B is designed as a complete solution, comes with a pre-installed driver library and is an easy-to-use, touch-enabled tool for managing devices throughout their entire life cycle.
Tip: The Netilion Library application is a valuable addition to Field Xpert. Netilion Library stores and manages all documents created with Field Xpert in the Endress+Hauser Cloud. So that everything is secure, up-to-date and available everywhere.
Benefits
High-performance industrial tablet.
Efficient asset management and maintenance to save time.
Mobile commissioning for all field devices.
Enhance collaboration and productivity with the integrated Netilion ecosystem.
Fast connections, automatic device recognition, and real-time updates.
Supports all protocols, both wired and wireless.
Extended selection
-
High-end products
- Highly functional and convenient
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
.jpg "Automatic dosing system for the water quantity of a reverse osmosis system")
-
Measuring principle
Device configurator
-
Function

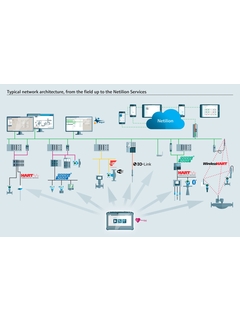

The Field Xpert SMT tablet PC for universal device configuration supports a variety of protocols, the Endress+Hauser service protocols, and connection to Endress+Hauser Bluetooth field devices and Endress+Hauser WLAN field devices. You can connect the field devices directly via a suitable interface, such as a modem (point-to-point), a bus system (point-to-bus) or a wireless connection (WLAN/Bluetooth).
-
Input
Camera:
8 MP camera on the back with auto focus and LED flash with 1500 mcd
2 MP camera on the front
Scanner:
1D/2D barcode scanner -
CPU
Intel Core i5-1235
-
Memory
16 GB DDR5
-
Hard disk drive
512 GByte SSD
Slot for microSD memory card (microSDXC) -
Power supply
Replaceable, rechargeable lithium polymer battery, 11.1 VDC, 3900 mAh (8 h)/6900 mAh (15 h) (optional)
-
Dimensions (WxHxD)
298 mm x 192 mm x 20 mm (11.7 in x 7.56 in x 0.79 in)
-
Screen size
11,6" LCD-Display, protected by Gorilla Glass
Capacitive multi-touch screen
Optical bonding, sunlight readable, LCD (1 000 Nit)
Ambient light sensor -
Resolution
1920 x 1080 (full HD)
-
Communication interface
1 x Thunderbolt 4
2 x USB 3.2 Gen 2 (Typ A)
Intel Wireless 6E AX211 (IEEE 802.11ax)
Bluetooth 5.3
3G, 4G LTE WWAN -
Operation
Operation system:
Windows 10 LTSC -
Configuration
Touch-enabled device configuration software optimized for Field Xpert. The software supports protocols such as HART, PROFIBUS DP/PA, PROFINET, FOUNDATION Fieldbus, Modbus, IO-Link, and Endress+Hauser service protocols (CDI, ISS, IPC and PCP) and includes several thousand pre-installed device and communication drivers.
-
Certificates
Degree of protection:
IP64
Electromagnetic Compatibility:
Interference conformance to
EN 55022: 2010+ AC: 2011
EN 55022 class B
EN 61000-3-3,2
Interference immunity to:
EN 55024: 2010
IEC 61000-4-2,3,4,5,6,8,11
Hazardous area approval:
ATEX (Europe)
SGS (North America)
IECEx (International)
KC (Korea)
CML (Japan)
INMETRO (Brazil)
MASC (South Africa)
CCC (China)
Radio approval:
CE, FCC, WPC, KC, MIC, ANATEL, ICASA, CMIIT ID and more
-
-
Technical Information (TI)
TI Field Xpert SMT70B
-
Technical Information (TI)
English version - 06/2025New version available in EnglishUniversal, high-performance tablet PC for device configuration in Ex Zone 2 and non-Ex areas
EN 01/06/202501/12/2024Language:
English
Version:
01/06/2025
File size:
1.1 MB
File name:
TI01814SEN_0225-00.pdf
-
-
-
Operating Instruction (BA)
BA Field Xpert SMT70B
-
Operating Instruction (BA)
English version - 12/2024New version available in EnglishUniversal, high-performance tablet PC for device configuration in Ex
Zone 2 and non-Ex areasEN 01/12/2024Language:
English
Version:
01/12/2024
File size:
2.9 MB
File name:
BA02390SEN_0124-00.pdf
-
-
-
Manufacturer Information (MI)
Field Xpert SMT70B - Software Version 1.08.xx
-
Manufacturer Information (MI)
English version - 12/2024New version available in EnglishManufacturer Information
for users regarding software and hardware updates
(following the NAMUR recommendation 53)EN 11/12/2024Language:
English
Version:
11/12/2024
File size:
99.7 KB
File name:
MI01514S_04_EN_01.24.pdf
-
-
-
Competence Brochure (CP)
Field Xpert SMT70B
-
Competence Brochure (CP)
German version - 12/2024New version available in EnglishUniverseller, leistungsstarker Tablet PC zur Gerätekonfiguration
Language:
German
Version:
04/12/2024
File size:
2.7 MB
File name:
CP01594S_04_DE_01.24.pdf
-
-
-
Competence Brochure (CP)
Field Xpert SMT70B
-
Competence Brochure (CP)
English version - 12/2024New version available in EnglishUniversal, high-performance tablet PC for device configuration
Language:
English
Version:
04/12/2024
File size:
2.7 MB
File name:
CP01594S_04_EN_01.24.pdf
-
-
-
Competence Brochure (CP)
Field Xpert SMT70B
-
Competence Brochure (CP)
Japanese version - 03/2025New version available in English機器設定にも対応したユニバーサルな高性能タブレットPC
Language:
Japanese
Version:
03/03/2025
File size:
2.3 MB
File name:
CP01594SJA_0124_Field Xpert SMT70B.pdf
-
-
-
AI (Application note)
Advancing a connected workforce strategy Maintaining, managing and migrating a legacy installed base just got easier
-
AI (Application note)
English version - 05/2025New version available in EnglishAdvancing a connected
workforce strategy
Maintaining, managing
and migrating a legacy
installed base just got easierLanguage:
English
Version:
27/05/2025
File size:
5.1 MB
File name:
FieldExpert-DIBAprogram-AI01424N24EN012500.pdf
-
-
-
AI (Application note)
Advancing a connected workforce strategy: Modern distillers at the intersection of art and science are evolving a linear production environment into a circular, digital journey
-
AI (Application note)
English version - 05/2025New version available in EnglishAdvancing a connected
workforce strategy:
Modern distillers at the
intersection of art and science
are evolving a linear production
environment into a circular,
digital journeyLanguage:
English
Version:
27/05/2025
File size:
8.7 MB
File name:
FieldExpert-Netilion-Distillery-AI01425B24EN012500.pdf
-
-
-
EU Declaration
Product family: Field Xpert
-
EU Declaration
English version - 01/2024New version available in EnglishProduct root: SMT70B-
Declaration number: EU_01228_01.24EN 04/01/2024Language:
English
Version:
04/01/2024
File size:
40.2 KB
File name:
EU_01228_01.24_Pad-Ex_01_P12_DZ2_EN_DE.pdf
-
-
-
UK Conformity Assessed
Product family: Field Xpert
-
UK Conformity Assessed
English version - 01/2024New version available in EnglishProduct root: SMT70B-
Declaration number: UK_00603_01.24Language:
English
Version:
04/01/2024
File size:
36.6 KB
File name:
UK_00603_01.24_Pad-Ex_01_P12_DZ2_EN.pdf
-
