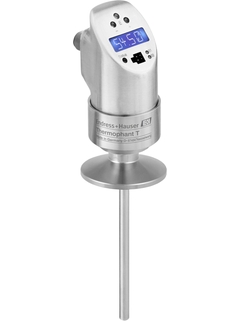

Thermophant T TTR35
Temperature switch

Thermophant T TTR35
Temperature switch ©Endress+Hauser
Thermophant T TTR35
Temperature switch ©Endress+Hauser
Thermophant T TTR35
Temperature switch ©Endress+Hauser

Compact and cost-saving for safe monitoring of process temperatures in hygienic applications

Cost efficiency, optimal use of space, reliable operation and easy commissioning indicate modern process measuring technology. The temperature switch completely fulfills these requirements in the Food & Beverage as well as in the Life Science industry. Designed for safe monitoring of process temperatures it can be selected between one or two switch outputs as well as one switch output and one standardized analog output. A variety of hygienic process connections leads to a flexible use.

  • Benefits

    • Integrated switching electronics for decentral and economic process monitoring and control

    • 3A approved

    • Function control and information on-site thanks to LEDs and digital display

    • Long-term stable temperature sensor made of platinum (Pt100 class A as per...

  • Field of application

    Temperature switch for the monitoring, display and control of process temperatures in a range from -50 to +150 °C (-58 to +302 °F), optional for TTR35 with neck: -50 to +200 °C (-58 to +392 °F) . Thermophant T TTR35 - for hygienic applications.

    ...

Features and specifications

Back

Details

  • Measuring principle

    Temperature switch

  • Characteristic / Application

    Intelligent temperature switch with Pt100 sensor (class A)

    for hygenic applications

    FDA compliant

  • Auxiliary power supply

    12...30 V DC

  • Accuracy

    -50...75 °C: <0,5 K

    (-58...167 °F: <0,9 °F)

    75...150 °C: <0,65 K

    (167...302 °F: <1,2 °F)

  • Long term drift

    <0,1 K/a (<0,2°F)

  • Operating temperature range

    -50...150 °C (-58...302 °F)

  • Process connection

    hygienic connections

  • Hint

    Not defined

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 51516983

      Commubox FXA291 (Hardware)

      Serial USB Computer Interface Technical Data: - USB Version1.1 or higher - Power supply via USB - IP51; NEMA/Typ 3 - Ambient temperature: -20....+60oC - Ex: II(2) G (EEx ia) II C - ATEX: BVS 05 ATEX E 095 Scope of deliovery: Commubox FXA 291 MS Windows USB driver Device is submitted for CSA/FM application. The device may not be modified and may be used with intrinsically safe circuits with corresponding characteristics only (see safety certificate).

    • Order code 51005148

      Cable M12x1 l=5m

      5m cable 4x 0.34 mm2, molded PVC angled connector, M12x1 connector screw Cu Sn/Ni, IP67.

    • Order code 51006327

      M12 elbow plug ready for cable, IP67,PG7

    • Order code TTR31X-AA

      Rubber cap for interface terminal Contains 5 pieces

    • Order code TXU10-

      Configuration kit TXU10-

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

    • Order code

      The unit is not repairable
