Name: iTEMP HART TMT182
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

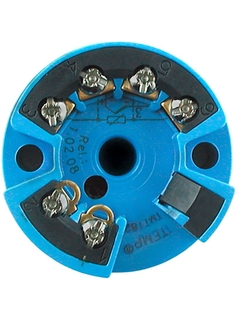

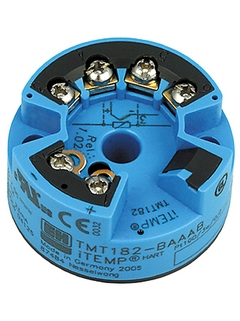

iTEMP TMT182 Temperature head transmitter

Predecessor

THT1
TMT2532
TMT2530

TMD830
TMD832

Successor

F

L

E

X

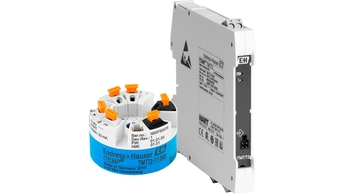

iTEMP HART TMT72

HART® temperature transmitter as head, field or DIN rail device with one universal sensor input suitable for use in hazardous areas
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Input

1 x RTD, TC, Ohm, mV
Output

1 x analog 4...20 mA
Auxiliary power supply

11,5...35 V DC (standard-version)
11,5...30 V DC (Ex-version)
Communication

HART-protocol
Installation

Terminal head form B
Accuracy

(Pt100, -50...200 °C) <= 0,2 K
(Pt100, -58...392 °F) <= 0,4 °F
Galvanic isolation

yes
Certification

UL Ex IS
UL Ex NI
GL marine approval
GOST Ex i
FM IS,NI,Class I,Div.1+2,Group ABCD
CSA IS,NI,Class I,Div.1+2,Group ABCD
ATEX II1G Ex ia IIC T4/T5/T6
ATEX II3G Ex nA IIC T4/T5/T6
ATEX II3D
ATEX II1G Ex ia IIC T6, II3D
ATEX II3G Ex nA IIC T6, II3D
FM+CSA IS,NI,Class I,Div.1+2,Group ABCD
CSA General Purpose
IECEx Ex ia IIC T6/T5/T4
ATEX IECEx II1G Ex ia IIC T6 Ga
EAC Ex ia IIC T6 Ga
GL (German Lloyd)

Filter

Search spare parts by number in drawing

60 spare parts & accessories

Spare part set for TMT181/187/188/182

further parts

Order code

51001112
Commubox FXA195

further parts

Order code

FXA195-
iTEMP TMT72, Transmitter HART

further parts

Order code

TMT72-
iTEMP TMT82, Transmitter HART

further parts

Order code

TMT82-
Adapter DIN rail mounting

Order code

71528231
Field Housing

Order code

TAF10-
Readwin 2000 Operation + Read. software

Order code

READWIN-

Language:	Language neutral
Version:	14/07/2026
File size:	201.4 MB
File name:	EH_iTemp_TMT_182_V1_1.zip

	EN
24/01/2019
17/08/2018
01/10/2010
09/06/2005

Language:	English
Version:	24/01/2019
File size:	560 KB
File name:	TI00078REN_1519.pdf

Language:	English
Version:	01/04/2002
File size:	2.2 MB
File name:	BA105RA2.PDF

Language:	English
Version:	02/02/2005
File size:	883.5 KB
File name:	Ba213ra2.pdf

iTEMP HART TMT182

Predecessor

Successor

iTEMP HART TMT72

Input

Output

Auxiliary power supply

Communication

Installation

Accuracy

Galvanic isolation

Certification

Back

Device Type Manager (DTM) - iTEMP TMT182 - HART

iTEMP TMT182 HART®

Betriebsanleitung/Operating Manuals iTEMP ® HART ® TMT 182

ReadWin® Quick Setup

Operating manual iTEMP HART Communication

Operating Manuals ReadWin 2000 (GB)

Brief operating manual iTEMP® HART® TMT182

TMT182 ATEX II1G Safety Instructions

Safety instructions ATEX II3D

XA iTEMP TMT181, TMT182, TMT187, TMT188

XA iTEMP TMT188

Back

Spare part set for TMT181/187/188/182

Commubox FXA195

iTEMP TMT72, Transmitter HART

iTEMP TMT82, Transmitter HART

Adapter DIN rail mounting

Field Housing

Readwin 2000 Operation + Read. software
